Manufacture and sale of Cylinders DIN/ISO
Cylinders DIN/ISO
- If you desire full compatibility with national and international standards of your hydraulic cylinders without having to forsake the proven technology and quality of HPS Hydropneu, then our standard cylinders, subject to DIN/ISO, perfectly fulfill your needs. Standardized attaching and mounting dimensions for seals, modularity of the components as well as the use of standard parts for components and accessories provides you with maximum flexibility both in maintenance and in replacement. Materials and manufacturing processes are carefully chosen to master the high quality requirements at HPS Hydropneu. All cylinders - available with up to 16 mounting types per cylinder type, nominal pressures from 100 to 250 bar, piston diameters from 25 to 320 mm and strokes up to 2000 mm - can be perfectly adapted to each particular case of application.
- SERVICE:
- CAD Data Configurator
- We will gladly advise you on the design for your specific application.
- We will also mount and commission your specialized cylinder on-site.
- Please do not hesitate to call us at + 49 (0) 711 / 34 29 99-0
- You can also use our contact form.
See our products
You will be redirected to the global GVCN 3Ds.
If it is an existing cylinder replacement, please send a request to hps@hpsinternational.com or contact your sales representative.
If it is an existing cylinder replacement, please send a request to hps@hpsinternational.com or contact your sales representative.
Cylinders DIN/ISO

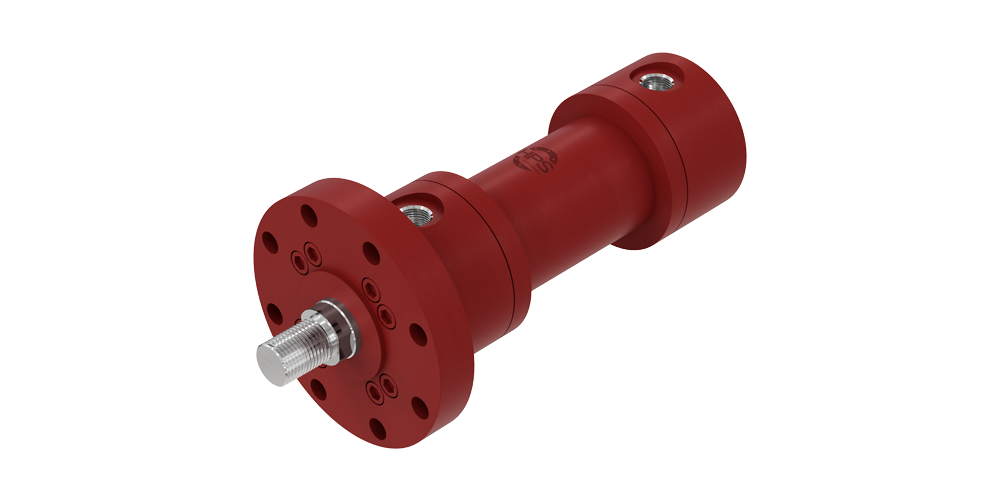

R160M Series
- Hydropneu - Type 47
- Modular round cylinder.
- Fully configurable, thanks to a multitude of mounting and options.
- Complying with ISO 6022 - DIN 24333.
Cylinders DIN/ISO
H160 Co Series
- Hydropneu - Type 51, 53, 55
- Modular tie rod.
- Fully configurable, in particular thanks to a multitude of mountings and options.
- Comply with ISO 6020/2 - DIN 24554.
Cylinders DIN/ISO
H250 Co Series
- Hydropneu - Type 46
- Type 46 cylinders are engineered in a modular system. All mounting types with the exception of the type "trunnion" are based upon one basic form and are built by screwing mounting components. Different piston rod ends can be combined with every mounting type.
- This cylinder can be used under the most severe conditions because of its construction design, its threaded cylindrical design, its sufficiently dimensioned guide lengths at the piston rod, as well as its heavy duty seals.

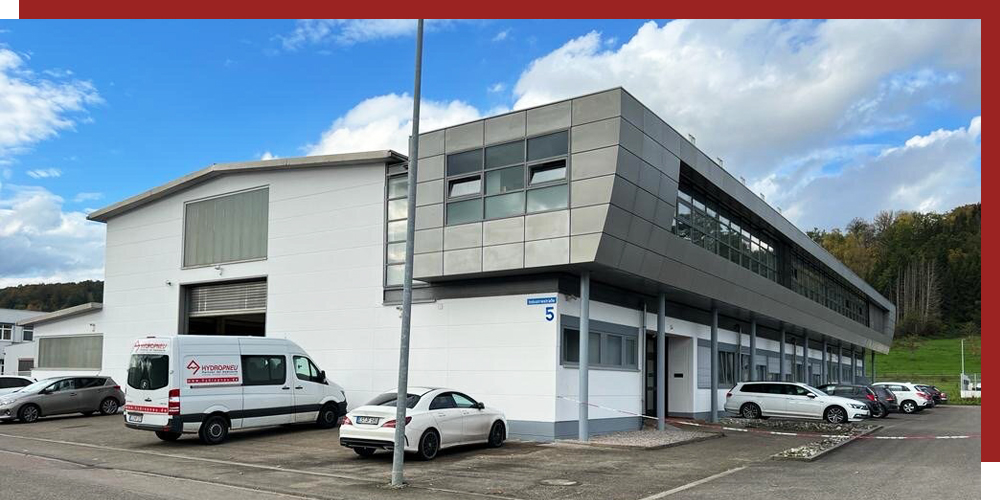

HPS Hydropneu GmbH
- Hydropneu’s success story began in the year 1958, when the company was founded in the heart of Baden-Württemberg. In the beginning the company developed hydraulic and pneumatic drive- and control components. After some years relying on its strong suit, however, hydraulics became the major focus of the company. The company’s attention to this area of business combined with its policy of systematic innovations and high engineering competence led to an elevated standard of performance thus establishing Hydropneu’s position amongst the leading manufacturers on the hydraulic market.
- Today the major center of attention is the production of hydraulic cylinders used in almost all areas of the industry. From classical mechanical engineering to high-tech medicine, from die casting tools to spoilers on a racing car, from waste incineration boilers to regulation systems for turbines - there is hardly any technical field in which Hydropneu’s products haven`t been utilized with unrelenting success.
- Due to customers’ frequent demands to deliver complete hydraulic systems the company has continuously expanded its expertise in the area of hydraulic power units and controls over the past years. Therefore it will be our pleasure to advise you on the design of your hydraulic system and provide you with whatever you need; from individual components up to complete electro-hydraulic systems.
